Water Boring Machines & Drilling Equipment (Buy/Hire)
Water Boring Machine in Pakistan The Right Rig for Every Depth, Every Ground Condition
Pakistan’s groundwater sits at different depths across different regions. In the plains of Punjab, a 100-foot bore gets you water. In parts of Balochistan, you are going 600 feet through hard rock before you see anything useful. The machine that works in one place will destroy itself in the other.
We supply water boring machines suited to actual Pakistani ground conditions: rotary rigs for alluvial plains, DTH (Down-The-Hole) rigs for rocky terrain, and portable small water boring machines for sites where a full-size truck-mounted rig simply cannot go. New units. Used units. Spare parts. Technical support after the sale.
Transparent water boring machine price in Pakistan, quoted in writing before any purchase commitment.
- Water well boring machines from 50m to 600m depth capacity
- Rotary, DTH, percussion, and portable options available
- Small water boring machine options for tight sites, farms, and rural locations
- Written quotation with machine specifications before purchase
- Diesel-powered and hydraulic systems for operation without grid electricity
- Truck-mounted, crawler, trailer, and tractor-mounted configurations
- Drill bits, casings, mud pumps, and consumables supplied alongside machines
Get a free quote
Others services
- Water Boring Services in Karachi
- Boring Water Rates 2026
- Geological Mapping & Subsurface Data Services
- Drone 3D Topography & Contour Mapping for Construction
- Industrial & Residential RO Plant Installation
- Solar Powered Tube Well Systems & Installation
- Boring Water Pumps, Motors & Pipe Price List 2026
- Hydrogeological & Hydrological Investigation Services
- Geotechnical Investigation & Soil Testing for High-Rises
Our process
Water Boring Machine Types — What Each One Does and Which One You Actually Need
Buying the wrong machine for your ground conditions is not a minor inconvenience. It is a machine that stalls at 50 feet when you need 200, or a rig that costs three times what the job requires. Here is how the main types compare.
01.
Rotary Water Boring Machines
Rotary drilling is the standard method for soft to medium formations: alluvial soil, clay, sandy layers, and loosely consolidated material. The drill bit rotates continuously and cuts through material while a mud pump circulates drilling fluid down the drill pipe, carrying cuttings back to the surface. Rotary machines handle most agricultural and residential boring in Punjab and Sindh’s plains efficiently, and they drill fast in the right conditions. A typical rotary water well boring machine in Pakistan can reach depths of 150 to 350 meters in appropriate formations. They work well where you need volume, speed, and a borehole diameter large enough for a casing and pump.
The limitation is rock. Put a rotary machine into dense limestone or granite and progress slows dramatically. That is where DTH takes over.
02.
DTH (Down-The-Hole) Water Boring Machines
DTH drilling places a pneumatic hammer directly at the bottom of the hole, immediately above the drill bit. The hammer strikes the rock face at high speed while the drill string rotates slowly, and compressed air from a surface compressor pushes the hammer, drives the bit, and simultaneously carries rock cuttings back to the surface. The result is that hard rock formations which would stop a rotary machine outright are drilled efficiently and relatively quickly.
DTH is the standard approach for water well drilling in rocky areas of Balochistan, KPK, and parts of Punjab where limestone and granite formations sit at shallow depths. DTH machines are also widely used for deep wells where rock is encountered below the softer surface layers. The trade-off is the need for a compressor of sufficient capacity alongside the rig, which adds to the total equipment requirement and fuel consumption.
03.
Small Water Boring Machines for Compact and Remote Sites
A truck-mounted rig needs road access, turning space, and a relatively flat working area. Plenty of drilling jobs in Pakistan do not have any of those. Farm fields with standing crops, narrow residential plots in dense urban areas, hillside locations with no vehicle track, and remote villages where a full-size rig cannot reach are all situations where a small water boring machine is the practical answer.
Portable and trailer-mounted small water boring machines typically reach 50 to 150 meters in soft to medium formations. They run on diesel engines in the 16 to 30 HP range, can be transported by a small truck or even a tractor, and require minimal setup space. Some models are genuinely wheel-mounted and two-person operable. They are not the machine for deep hard-rock drilling, but for a residential water well, a small farm bore, or an emergency water point in a remote area, they get the job done without the cost and logistics of a full-size rig.
04.

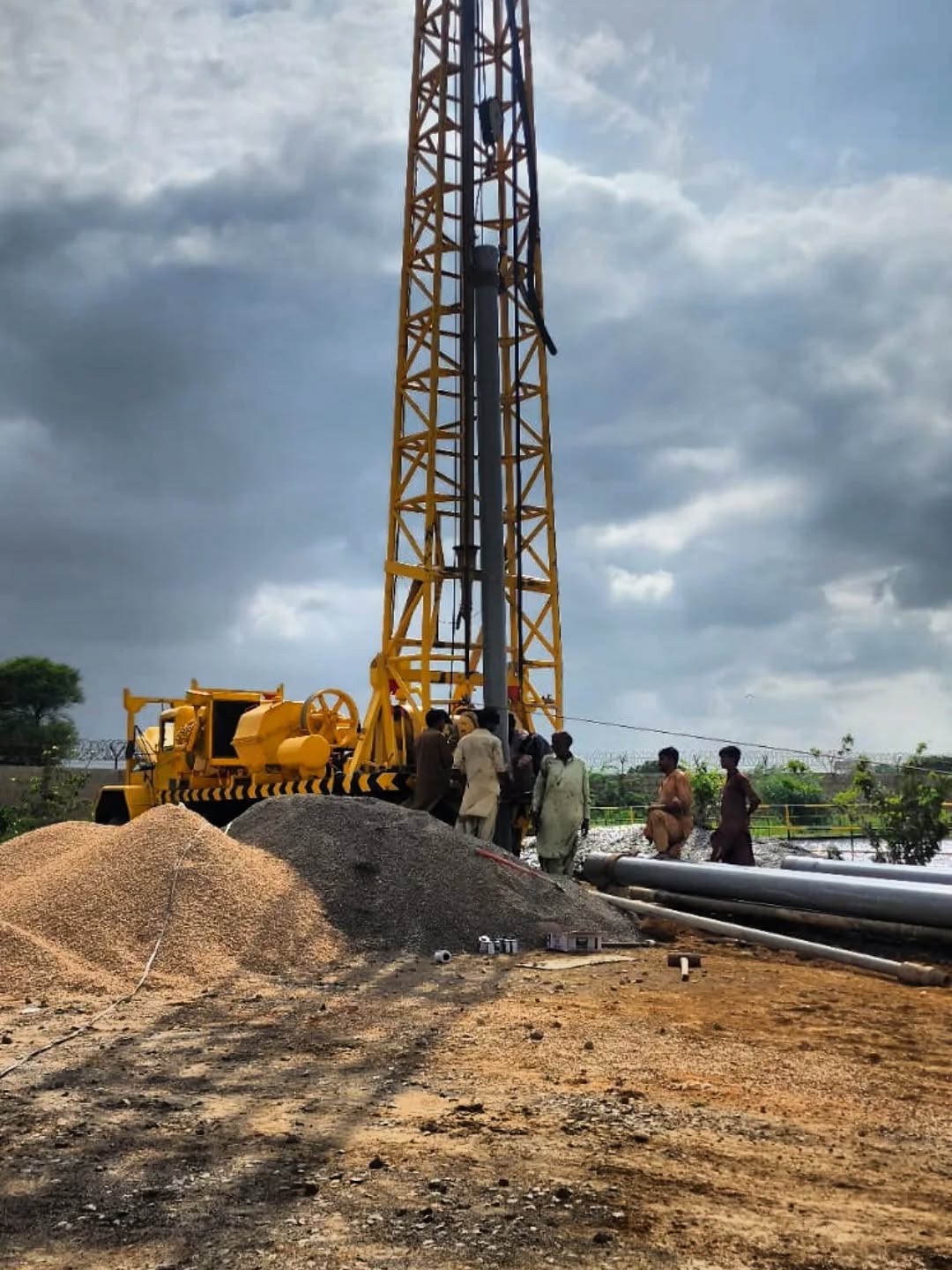

Crawler and Truck-Mounted Rigs for High-Volume and Deep Drilling
For commercial water well contractors, water supply projects, geothermal drilling, and deep agricultural tube wells beyond 200 meters, truck-mounted and crawler-mounted rigs offer the output capacity the job demands. These machines carry their own mast, hydraulic rotary head, main winch, mud pump, and in some configurations, an on-board air compressor. Drilling depths of 300 to 600 meters are achievable with the right bit selection and drilling program. Crawler mounting gives access to terrain that a wheeled truck cannot reach while maintaining the power and torque of a commercial-grade machine.
Why Choose Us
Why Pakistan's Drillers and Contractors Choose Our Water Well Boring Machines
Equipment suppliers who disappear after the sale are a specific kind of problem in Pakistan's machinery market. A drilling rig sitting idle because a spare part is unavailable or a hydraulic seal has failed costs you money every day it is not turning.
Machines Matched to Your Ground Conditions
Before we quote a machine, we ask where you are drilling, how deep, and what ground you expect to encounter. A Punjab farmer drilling into alluvial sediment at 120 feet needs a different machine from a Balochistan contractor drilling through limestone at 350 feet. We do not sell one machine as the answer to every situation. We match the rig to the geology, and if your expected conditions call for DTH capability or a larger compressor than the base package includes, we say so before the purchase.
Spare Parts Available After the Sale

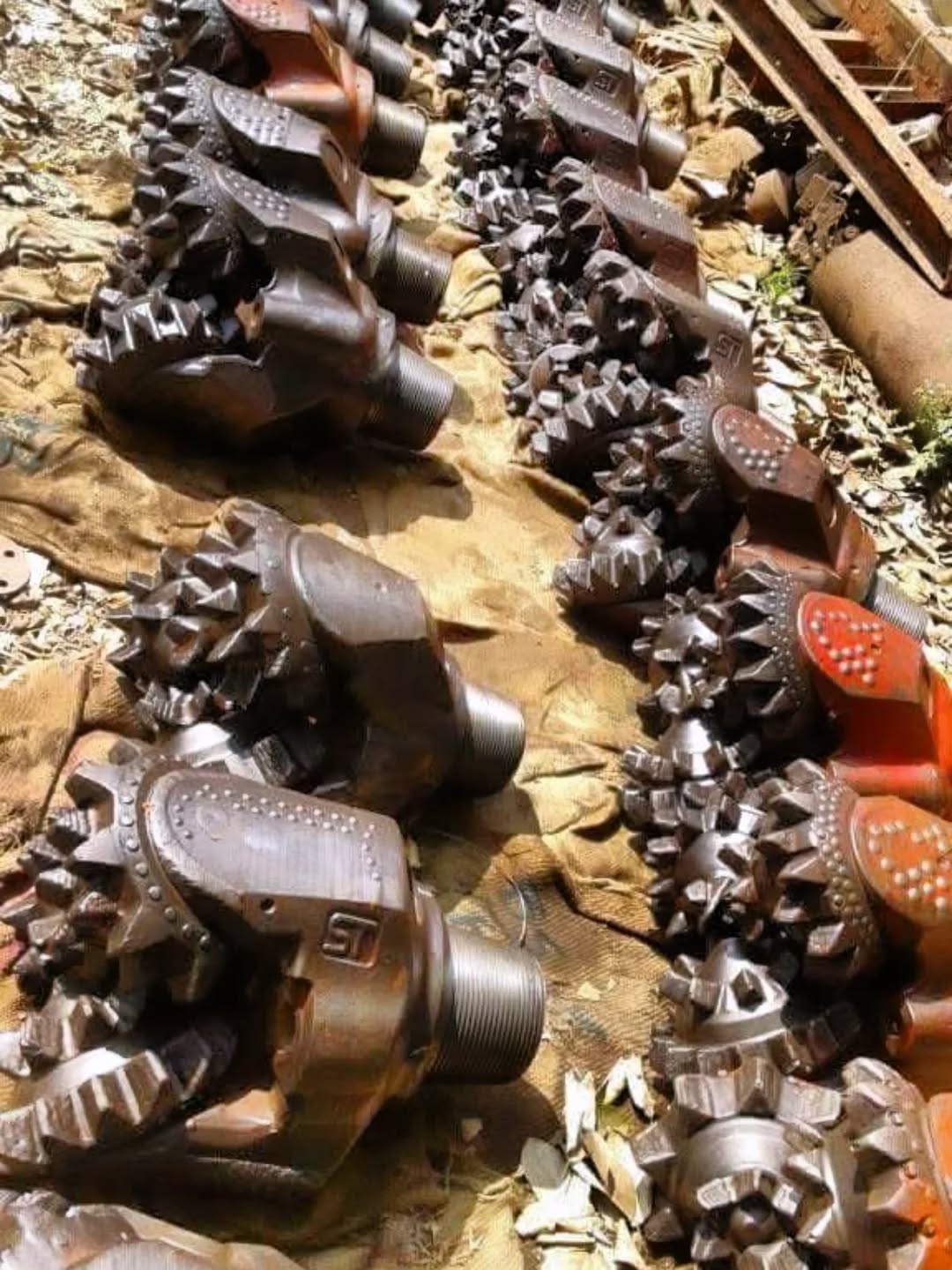

The most common failure points on water boring machines are drill bits, hydraulic seals, mud pump wear components, and rotary head bearings. We stock or can source the critical consumables and wear parts for every machine we sell. That matters practically because a machine without parts availability is a machine that sits on your site doing nothing while you wait for components to arrive from overseas.
Water Boring Machine Price in Pakistan Fixed at Quotation
The price in your written quotation is the price on the invoice. No additions at delivery for transport, commissioning, or accessories that were always going to be needed. If freight to your location or a training session for your operator adds cost, it appears in the quotation, not as a surprise after you have committed.
Excellence skills & Quality work
Our commitment to precision drives every project we undertake. We combine technical mastery with a rigorous attention to detail, ensuring that every borehole, survey, and engineering solution meets the highest industry standards. By prioritizing safety and structural integrity, we transform complex geological challenges into seamless, high-performing assets for our clients.
